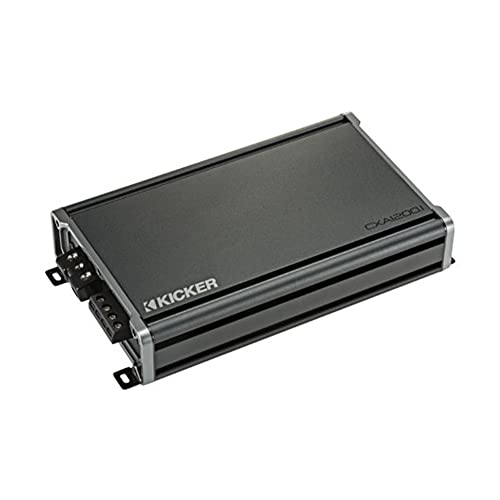

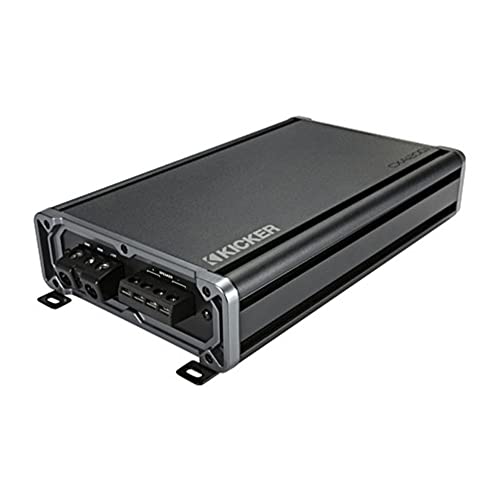

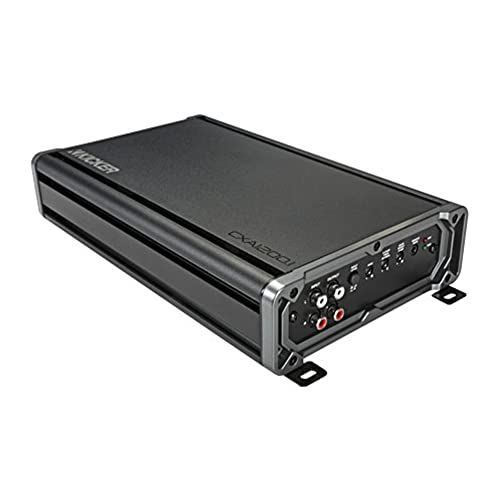

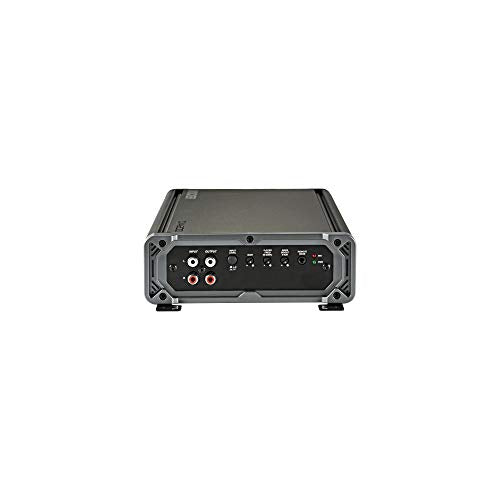

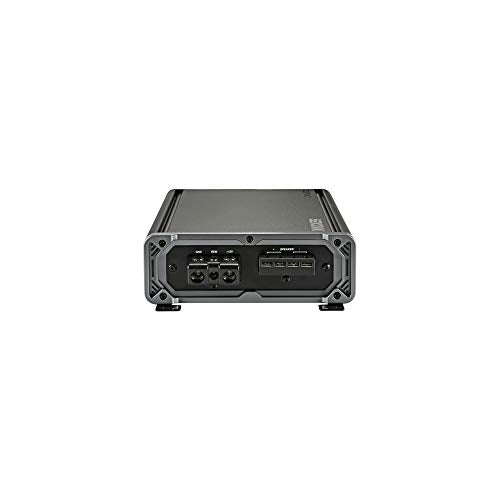

Kicker 46CXA1200.1 1200-Watt Mono Class D Subwoofer Amplifier

Power your car audio system with the Kicker 46CXA1200.1 CX-Series Mono Subwoofer Amplifier. Built with high-efficiency Class D circuit technology, this monoblock amplifier delivers up to 1,200 Watts RMS of clean, hard-hitting bass to your subwoofers. Engineered with 1-ohm stability, the 46CXA1200.1 gives you ultimate system flexibility when wiring multiple subwoofers.

Featuring Kicker's proprietary FIT+™ (Fail-safe Integration Technology-PLUS), this amplifier accepts up to 40-volt speaker-level signals. This allows direct connection to virtually any factory or aftermarket head unit without needing an external line-output converter.

Key Features

• 1-Ohm Stable Power: Output up to 1,200 Watts RMS into a 1-ohm or 2-ohm load for maximum output options.

• FIT+™ Integration: Seamlessly interfaces with almost any factory or aftermarket radio setup, accommodating high-level signal inputs up to 40 volts.

• KickEQ™ Bass Boost: Built-in variable bass boost offers up to +6dB centered at 40Hz to add extra impact to your low frequencies.

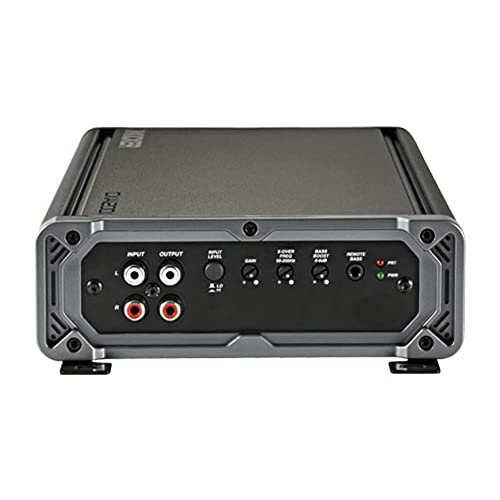

• Precision Signal Tuning: Features a variable 12dB/octave low-pass crossover (50–200Hz) and a fixed 24dB subsonic filter (25Hz) to protect subs from damaging ultra-low frequencies.

• Pop Elimination: Built-in 3-second turn-on/off delay protects your subwoofers from unwanted turn-on pops and signals.

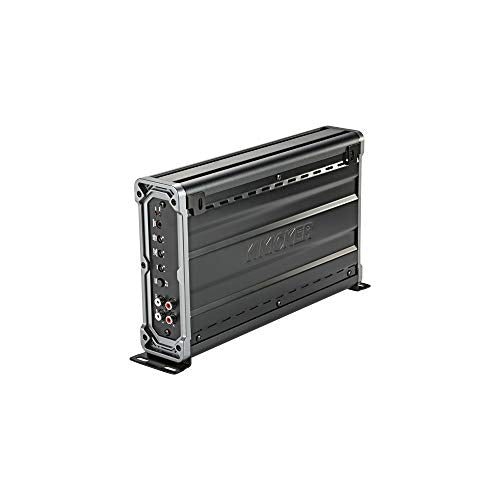

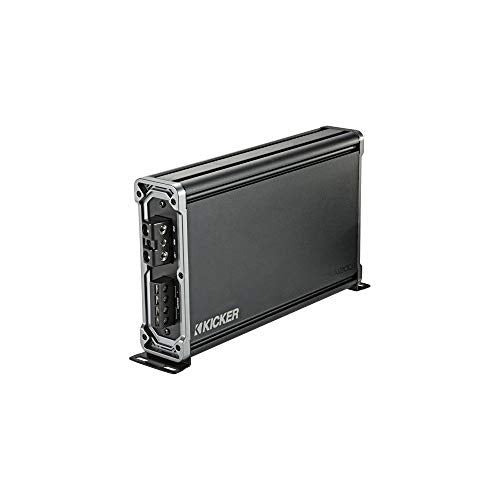

• Versatile Mounting: Includes dedicated vertical mounting hardware to save cargo space and offer flexible installation options.

• Remote Bass Control Compatible: Fully compatible with the optional Kicker CXARC remote bass level controller (sold separately).

Technical Specifications

• RMS Power Output (14.4V):

  • 1200 Watts x 1 @ 1-Ohm (+/-10%)

  • 1200 Watts x 1 @ 2-Ohm

  • 600 Watts x 1 @ 4-Ohm

• Frequency Response: 25 Hz – 200 Hz

• Signal-to-Noise Ratio: 95 dB

• Input Sensitivity: 250mV–10V (Low-Level), 1V–40V (High-Level)

• Low-Pass Crossover: Variable 50 Hz – 200 Hz (12 dB/octave)

• Subsonic Filter: Fixed 25 Hz (24 dB/octave)

• KickEQ™ Bass Boost: Variable 0 to +6 dB @ 40 Hz

• Dimensions (L x W x H): 12-5/8" x 6-3/4" x 2-3/8" (30.6 cm x 17 cm x 5.9 cm)
